Portable Mobile

BABY-LITE (LED-4)

LIGHTING TOWER RIG ONLY
– GENERATOR NOT INCLUDED

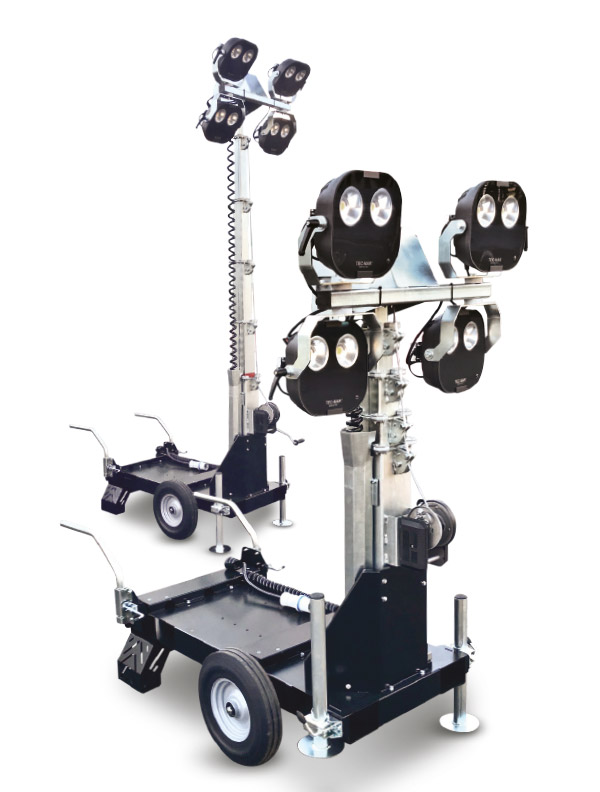

When looking for a portable, easy to manage and highly versatile lighting solution, look no further than our MHM Lightower Baby-Lite (LED-4).

Baby Lite LED 4
4m Mast
standard load delivery 28 per truck
Suitable for most brands of petrol or diesel generators from 2 – 6.5kVA
Features & Benefits
  • 4 x 200W LED 3600 swivel & tilt lighting head (230v or 110v power required)
    2,300m2 Light Coverage
  • 4m vertical stainless steel manual mast
    For quick and simple erection
  • Base is suitable for most brands of petrol or diesel generators from 2 – 6.5kVA
    Massive flexibility to utilise your existing generator fleet to offer an instant lighting tower in under 10 minutes
  • Rig base can be used as a stand-alone lighting tower, powered either from a separate generator or from the mains
    A multi-purpose rental asset, suitable for a variety of applications
  • Front, side & rear fork pockets
    For extra-safe onsite lifting
  • Complete on trolley kit, folding handles + 2x fully adjustable stabiliser legs
    For easy portability and set up

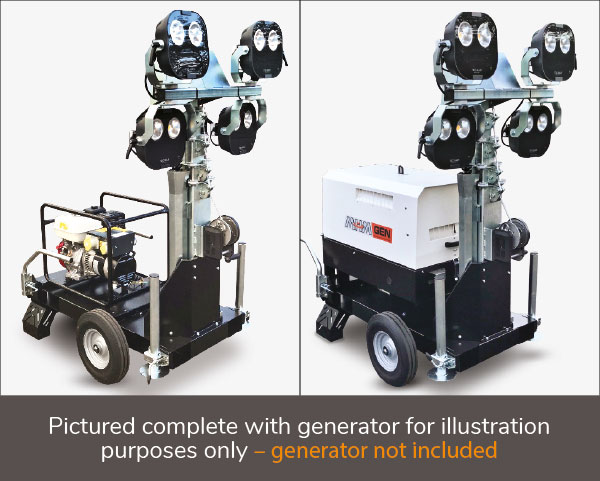

Pictured complete with generator for illustration purposes only – generator not included

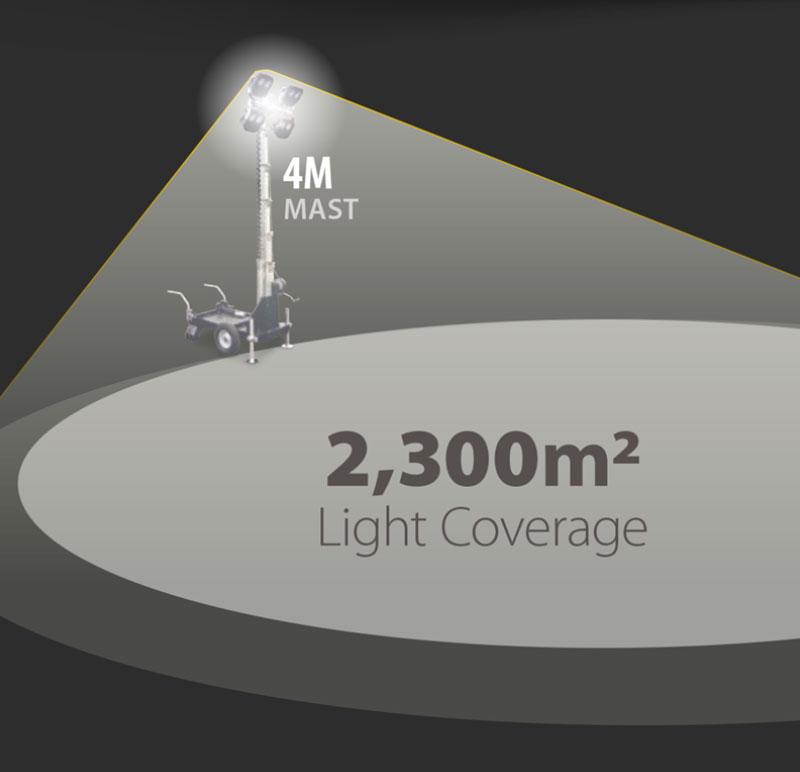

babylite led-4 coverage
babylite led-4 coverage

Weights & Dimensions

(Flat base plate to fit generator)
Length 1080 mm
Width 590 mm
Maximum Load Weight 275 kg
(Storage mode: handles folded in, stabilisers up & mast down)
Length 1470 mm
Width 865 mm
Height 1900 mm
(Operating mode: handles folded out, stabilisers down & mast up)
Length 1870 mm
Width 865 mm
Height 4000 mm
Weight 210 kg
Socket Configuration
1ph (230V) 1ph (110V)
32A 16A 32A 16A
- 1 - -

Light is dual volatage (230v/110v), so either plug can be used.
